Forklift Mast Tapered Roller Bearings 32230
Basic Info
Model No.: 32230
Product Description
Packaging Details: | 1.Industrial Packing: a)Plastic Tube+Carton+Pallet b)Plastic Bag+Kraft Paper+Carton+Pallet . 2.Commercial Packing a)Plastic Bag+Color Box+Carton+Pallet. 3. According to the Requirement of Customers. |
Delivery Detail: | within 7 days after confirmed this order |
Taper Roller Bearing 32230 specifications | |
Designation | 32230 |
Principle dimensions (d) | 150mm |
Principle dimensions (D) | 270mm |
Principle dimensions (T) | 78mm |
Basic load ratings (dyn.) | 752kN |
Basic load ratings (stat.) | 1155kN |
Limiting speed (grease lubrication) | 1200r/min |
Limiting speed (oil lubrication) | 1700r/min |
Weight | 17kg |
Model Number | 32230 |
Brand Name | LYAZ OEM |
Series | 30200 series, 30300 series, 31300 series, 32000 series, 32200 series, 32300 series, 32900 series 33000 series,33200 series,33100 series,inch taper Ball Bearing and so on. |
Size | d :15-160mm D :35-540mm T :11.75-121mm |
Seals Type | Open, |
Material | Ring Material Chrome Steel ,Carbon steel,Stainless steel |
Cage material | Nylon ,steel , brass |
Clearance | C0,C2,C3,C4,C5 |
Vibration | Zv1,Zv2 and Zv3 |
Precision Rating | P0,P6,P5 |
Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on . |
Number of Row | Single Row |
Guarantee | One year. |
Application | Home appliances, low noise and high speed electric motors, |
automotive components, pumps, machinery. | |
Certifications | ISO 9001:2008 |
Package | Single box or according to buyers requirement . |
Place of Origin | China (Mainland) |
MOQ | 1 PCS |
Service | (1) Prompt Delivery |
(2) OEM | |
(3) Good Service Offered | |
(4) Buyer Label Offered | |
Payment Term | TT or L/C |
Port | Qingdao |
Taper roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds. The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer. This kind of bearings can be applied to many fields such as auto rear wheel, transmission, differential, small gear axle, machine tool spindle, building machinery, small-size agricultural machinery, railway vehicle and gear deceleration device, small deceleration device for rolling mill journal, and etc. Tapered roller bearings are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preload can be made
Number | Unit | Cup OUTSIDE DIA. | Cone BORE | Cone WIDTH | Cup WIDTH | Bearing WIDTH | Max.Shaft Fillet Radii | Max.Hsng. Fillet Radii |
D | d | B | C | T | R | r | ||
30204 | mm | 47.000 | 20.000 | 14.000 | 12.000 | 15.250 | 2.5 | 1.6 |
in | 1.850 | 0.787 | 0.551 | 0.472 | 0.600 | 0.098 | 0.063 | |
30205 | mm | 52.000 | 25.000 | 15.000 | 13.000 | 16.250 | 2.5 | 1.9 |
in | 2.047 | 0.984 | 0.591 | 0.512 | 0.640 | 0.098 | 0.075 | |
30206 | mm | 62.000 | 30.000 | 16.000 | 14.000 | 17.250 | 2.5 | 1.9 |
in | 2.441 | 1.181 | 0.630 | 0.551 | 0.679 | 0.098 | 0.075 | |
30207 | mm | 72.000 | 35.000 | 17.000 | 15.000 | 18.250 | 3.0 | 2.3 |
in | 2.835 | 1.378 | 0.669 | 0.591 | 0.719 | 0.118 | 0.091 | |
30207/D80 | mm | 80.000 | 35.000 | 17.000 | 15.000 | 18.250 | 1.4 | 0.9 |
in | 3.150 | 1.378 | 0.669 | 0.591 | 0.719 | 0.055 | 0.035 | |
30208 | mm | 80.000 | 40.000 | 18.000 | 16.000 | 19.750 | 3.0 | 2.3 |
in | 3.150 | 1.575 | 0.709 | 0.630 | 0.778 | 0.118 | 0.091 | |
30209 | mm | 85.000 | 45.000 | 19.000 | 16.000 | 20.750 | 3.0 | 2.3 |
in | 3.346 | 1.772 | 0.748 | 0.630 | 0.817 | 0.118 | 0.091 | |
30210 | mm | 90.000 | 50.000 | 20.000 | 17.000 | 21.750 | 3.0 | 2.3 |
in | 3.543 | 1.969 | 0.787 | 0.669 | 0.856 | 0.118 | 0.091 | |
30211 | mm | 100.000 | 55.000 | 21.000 | 18.000 | 22.750 | 4.0 | 2.3 |
in | 3.937 | 2.165 | 0.827 | 0.709 | 0.896 | 0.157 | 0.091 | |
30212 | mm | 110.000 | 60.000 | 22.000 | 19.000 | 23.750 | 4.0 | 2.3 |
in | 4.331 | 2.362 | 0.866 | 0.748 | 0.935 | 0.157 | 0.091 | |
30213 | mm | 120.000 | 65.000 | 23.000 | 20.000 | 24.750 | 4.0 | 2.3 |
in | 4.724 | 2.559 | 0.906 | 0.787 | 0.974 | 0.157 | 0.091 | |
30214 | mm | 125.000 | 70.000 | 24.000 | 21.000 | 26.250 | 4.0 | 2.8 |
in | 4.921 | 2.756 | 0.945 | 0.827 | 1.033 | 0.157 | 0.110 | |
30215 | mm | 130.000 | 75.000 | 25.000 | 22.000 | 27.250 | 4.0 | 2.8 |
in | 5.118 | 2.953 | 0.984 | 0.866 | 1.073 | 0.157 | 0.110 | |
30216 | mm | 140.000 | 80.000 | 26.000 | 22.000 | 28.250 | 5.0 | 3.5 |
in | 5.512 | 3.150 | 1.024 | 0.866 | 1.112 | 0.197 | 0.138 | |
30217 | mm | 150.000 | 85.000 | 28.000 | 24.000 | 30.500 | 5.0 | 3.5 |
in | 5.906 | 3.346 | 1.102 | 0.945 | 1.201 | 0.197 | 0.138 | |
30218 | mm | 160.000 | 90.000 | 30.000 | 26.000 | 32.500 | 5.0 | 3.5 |
in | 6.299 | 3.543 | 1.181 | 1.024 | 1.280 | 0.197 | 0.138 | |
30219 | mm | 170.000 | 95.000 | 32.000 | 27.000 | 34.500 | 5.5 | 4 |
in | 6.693 | 3.740 | 1.260 | 1.063 | 1.358 | 0.217 | 0.157 | |
30220 | mm | 180.000 | 100.000 | 37.000 | 29.000 | 37.000 | 5.5 | 4 |
in | 7.087 | 3.937 | 1.457 | 1.142 | 1.457 | 0.217 | 0.157 | |
30221 | mm | 190.000 | 105.000 | 39.000 | 30.000 | 39.000 | 5.5 | 4.0 |
in | 7.480 | 4.134 | 1.535 | 1.181 | 1.535 | 0.217 | 0.157 | |
30222 | mm | 200.000 | 110.000 | 38.000 | 32.000 | 41.000 | 5.5 | 4 |
in | 7.874 | 4.331 | 1.496 | 1.260 | 1.614 | 0.217 | 0.157 | |
30224 | mm | 215.000 | 120.000 | 40.000 | 34.000 | 43.500 | 5.5 | 4 |
in | 8.465 | 4.724 | 1.575 | 1.339 | 1.713 | 0.217 | 0.157 | |
30303 | mm | 47.000 | 17.000 | 14.000 | 12.000 | 15.250 | 2.5 | 1.6 |
in | 1.850 | 0.669 | 0.551 | 0.472 | 0.600 | 0.098 | 0.063 | |
30304 | mm | 52.000 | 20.000 | 15.000 | 13.000 | 16.250 | 3.0 | 2.3 |
in | 2.047 | 0.787 | 0.591 | 0.512 | 0.640 | 0.118 | 0.091 | |
30305 | mm | 62.000 | 25.000 | 17.000 | 15.000 | 18.250 | 3.0 | 2.3 |
in | 2.441 | 0.984 | 0.669 | 0.591 | 0.719 | 0.118 | 0.091 | |
30306 | mm | 72.000 | 30.000 | 19.000 | 16.000 | 20.750 | 3.0 | 2.3 |
in | 2.835 | 1.181 | 0.748 | 0.630 | 0.817 | 0.118 | 0.091 | |
30306/H23 | mm | 72.000 | 30.000 | 19.000 | 18.000 | 23.000 | 3.0 | 2.3 |
in | 2.835 | 1.181 | 0.748 | 0.709 | 0.906 | 0.118 | 0.091 | |
30307 | mm | 80.000 | 35.000 | 21.000 | 18.000 | 22.750 | 4.0 | 2.3 |
in | 3.150 | 1.378 | 0.827 | 0.709 | 0.896 | 0.157 | 0.091 | |
30308 | mm | 90.000 | 40.000 | 23.000 | 20.000 | 25.250 | 4.0 | 2.3 |
in | 3.543 | 1.575 | 0.906 | 0.787 | 0.994 | 0.157 | 0.091 | |
30309 | mm | 100.000 | 45.000 | 25.000 | 22.000 | 27.250 | 4.0 | 2.8 |
in | 3.937 | 1.772 | 0.984 | 0.866 | 1.073 | 0.157 | 0.110 | |
30310 | mm | 110.000 | 50.000 | 27.000 | 23.000 | 29.250 | 5.0 | 3.5 |
in | 4.331 | 1.969 | 1.063 | 0.906 | 1.152 | 0.197 | 0.138 | |
30311 | mm | 120.000 | 55.000 | 29.000 | 25.000 | 31.500 | 5.0 | 2.8 |
in | 4.724 | 2.165 | 1.142 | 0.984 | 1.240 | 0.197 | 0.110 | |
30312 | mm | 130.000 | 60.000 | 31.000 | 26.000 | 33.500 | 5.5 | 4 |
in | 5.118 | 2.362 | 1.220 | 1.024 | 1.319 | 0.217 | 0.157 | |
30313 | mm | 140.000 | 65.000 | 33.000 | 28.000 | 36.000 | 5.5 | 4 |
in | 5.512 | 2.559 | 1.299 | 1.102 | 1.417 | 0.217 | 0.157 | |
30314 | mm | 150.000 | 70.000 | 35.000 | 30.000 | 38.000 | 5.5 | 4 |
in | 5.906 | 2.756 | 1.378 | 1.181 | 1.496 | 0.217 | 0.157 | |
30315 | mm | 160.000 | 75.000 | 37.000 | 31.000 | 40.000 | 5.5 | 4 |
in | 6.299 | 2.953 | 1.457 | 1.220 | 1.575 | 0.217 | 0.157 | |
30316 | mm | 170.000 | 80.000 | 39.000 | 33.000 | 42.500 | 5.5 | 4 |
in | 6.693 | 3.150 | 1.535 | 1.299 | 1.673 | 0.217 | 0.157 | |
30317 | mm | 180.000 | 85.000 | 41.000 | 34.000 | 44.500 | 7.0 | 4.5 |
in | 7.087 | 3.346 | 1.614 | 1.339 | 1.752 | 0.276 | 0.177 | |
30318 | mm | 190.000 | 90.000 | 43.000 | 36.000 | 46.500 | 7.0 | 4.5 |
in | 7.480 | 3.543 | 1.693 | 1.417 | 1.831 | 0.276 | 0.177 | |
30319 | mm | 200.000 | 95.000 | 45.000 | 38.000 | 49.500 | 7.0 | 4.5 |
in | 7.874 | 3.740 | 1.772 | 1.496 | 1.949 | 0.276 | 0.177 | |
30320 | mm | 215.000 | 100.000 | 47.000 | 39.000 | 51.500 | 7.0 | 4.5 |
in | 8.465 | 3.937 | 1.850 | 1.535 | 2.028 | 0.276 | 0.177 |

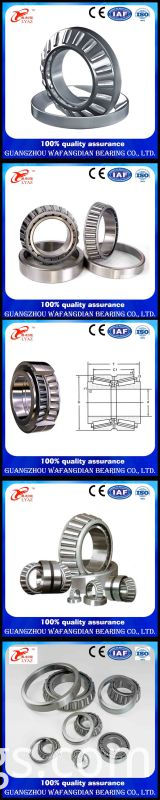

1) Taper roller bearings (Inch;Single Row;Double rows).
2) Deep groove ball bearings(Gcr15 Carbon Z 2Z RS 2RS) .
3) Pillow Block Bearings and seats(UCP UCF UCFL UCT).
4) Wheel Hub Bearing.
Wafang Dian Bearing Advantage
1) Material Advantage
All the material for Wafang Dian bearing are from the best suppliers in China.
2) Processing Advantage
we can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from Other Bearings manufacturers.
3) Quality control advantage
All the bearing parts are 100% strictly inspected before and during production including Metallurgical testing, crack detection, roundness, hardness, roughness and g++eometric dimensions.
4) All of bearings meet the ISO international standard.
5) Appearance Technology Advantage
we can provide light chamfer, black chamfer, black chamfer of the rollers. The bearings are produced all according to customer's requirements.
6) Service Advantage
Your satisfaction is our biggest goal. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.
Company information
Our factory has been founded for around 30 years, We are a professional manufacturer of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, Cylindrical Roller Bearing, tapered roller bearings, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in Mid-eastern countries. Thanks for every customer's support and trust, our company hope to establish mutual benefit and development business relations with you!
If you are interested in our products Deep Groove Ball Bearing, welcome to contact us for more detailed information, Your inquiry related to our product & price will be replied within 24hours Well-trained & experienced staff are to answer all your inquiries. OEM & ODM projects are highly welcomed. We have strong R&M team here to help. Free samples available The professional Logistic Center service Technical support after sale Any other reasonable requirements.
We participate Canton Fair,Shanghai Auto Mechanika Fair,Professional Auto Parts Fair annually.
Welcome Inquiry and order !
Thank you! Contact us if you need more details on Taper Roller Bearing . We are ready to answer your questions on packaging, logistics, certification or any other aspects about 32230 Bearing、32230 Taper Roller Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
