Auto Bearing Taper Roller Bearing 32214 32215 32216 32217 32218 32219
Basic Info
Model No.: 32214 32215 32216 32217 32218 32219
Product Description
Packaging Details: | 1.Industrial Packing: a)Plastic Tube+Carton+Pallet b)Plastic Bag+Kraft Paper+Carton+Pallet . 2.Commercial Packing a)Plastic Bag+Color Box+Carton+Pallet. 3. According to the Requirement of Customers. |
Delivery Detail: | within 7 days after confirmed this order |

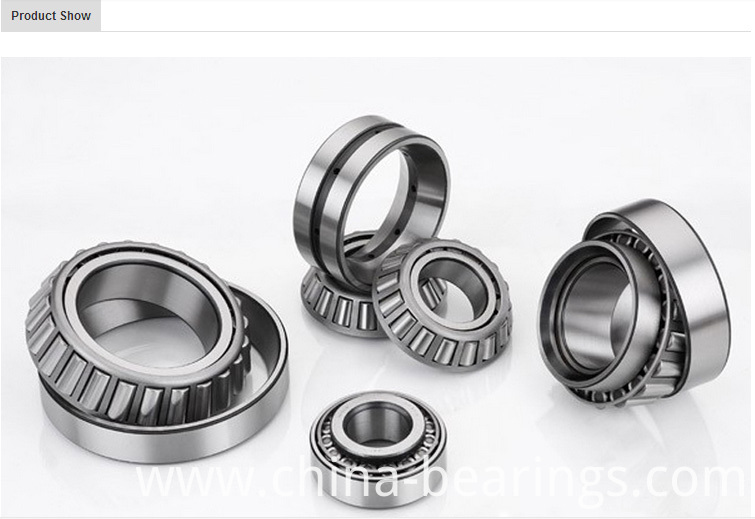

Auto Bearing Taper Roller Bearing 32214 32215 32216 32217 32218 32219 Product Description Descriptions of Tapered roller bearings Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load Tapered Roller Bearings generally come in two parts - the cone (consisting of the inner ring and roller cage assembly) and the cup (outer ring). These two parts can be mounted separately. Tapered Roller Bearings are particularly suited to the accommodation of combined radial and axial loads Applications: Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills. Applications of taper roller bearings 1)Agriculture machine parts, 2)Light textile, 3)Mining machine,crasher machine, 4)Food &beverage machine, 5)Pharmaceutical machine, 6)Chemical processing, 7)Printing machine, 8)Dyeing machine, 9)Airport machine,passaenger lift,elevator 10)Air-conditioning, 2: model number of taper rollerwheel bearing
Item | old item | d | D | h | Cr | Cor | Grease | oil | weight |
(mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |||
32207 | 7507E | 35 | 72 | 23 | 70.5 | 89.5 | 5300 | 6700 | 0.445 |
32208 | 7508E | 40 | 80 | 23 | 77.8 | 97.2 | 5000 | 6300 | 0.532 |
32209 | 7509E | 45 | 85 | 23 | 80.8 | 105 | 4500 | 5600 | 0.573 |
32210 | 7510E | 50 | 90 | 23 | 82.8 | 108 | 4300 | 5300 | 0.626 |
32211 | 7511E | 55 | 100 | 25 | 108 | 142 | 3800 | 4800 | 0.853 |
32212 | 7512E | 60 | 110 | 28 | 132 | 180 | 3600 | 4500 | 1.17 |
32213 | 7513E | 65 | 120 | 31 | 160 | 222 | 3200 | 4000 | 1.55 |
32214 | 7514E | 70 | 125 | 31 | 168 | 238 | 3000 | 3800 | 1.64 |
32215 | 7515E | 75 | 130 | 31 | 170 | 242 | 2800 | 3600 | 1.74 |
32216 | 7516E | 80 | 140 | 33 | 198 | 278 | 2600 | 3400 | 2.13 |
32217 | 7517E | 85 | 150 | 36 | 228 | 325 | 2400 | 3200 | 2.68 |
32218 | 7518E | 90 | 160 | 40 | 270 | 395 | 2200 | 3000 | 3.44 |
32219 | 7519E | 95 | 170 | 43 | 302 | 448 | 2000 | 2800 | 4.24 |
32220 | 7520E | 100 | 180 | 46 | 340 | 512 | 1900 | 2600 | 5.1 |
32222 | 7522E | 110 | 200 | 53 | 430 | 665 | 1700 | 2200 | 7.43 |
32322 | 7622E | 110 | 240 | 80 | 607 | 797 | 1600 | 2200 | 16.6 |
32224 | 7524E | 120 | 215 | 62 | 478 | 758 | 1500 | 1900 | 9.6 |
32226 | 7526E | 130 | 230 | 64 | 552 | 888 | 1400 | 1800 | 11.4 |
Number | Unit | Cup OUTSIDE DIA. | Cone BORE | Cone WIDTH | Cup WIDTH | Bearing WIDTH | Max.Shaft Fillet Radii | Max.Hsng. Fillet Radii |
D | d | B | C | T | R | r | ||
30204 | mm | 47.000 | 20.000 | 14.000 | 12.000 | 15.250 | 2.5 | 1.6 |
in | 1.850 | 0.787 | 0.551 | 0.472 | 0.600 | 0.098 | 0.063 | |
30205 | mm | 52.000 | 25.000 | 15.000 | 13.000 | 16.250 | 2.5 | 1.9 |
in | 2.047 | 0.984 | 0.591 | 0.512 | 0.640 | 0.098 | 0.075 | |
30206 | mm | 62.000 | 30.000 | 16.000 | 14.000 | 17.250 | 2.5 | 1.9 |
in | 2.441 | 1.181 | 0.630 | 0.551 | 0.679 | 0.098 | 0.075 | |
30207 | mm | 72.000 | 35.000 | 17.000 | 15.000 | 18.250 | 3.0 | 2.3 |
in | 2.835 | 1.378 | 0.669 | 0.591 | 0.719 | 0.118 | 0.091 | |
30207/D80 | mm | 80.000 | 35.000 | 17.000 | 15.000 | 18.250 | 1.4 | 0.9 |
in | 3.150 | 1.378 | 0.669 | 0.591 | 0.719 | 0.055 | 0.035 | |
30208 | mm | 80.000 | 40.000 | 18.000 | 16.000 | 19.750 | 3.0 | 2.3 |
in | 3.150 | 1.575 | 0.709 | 0.630 | 0.778 | 0.118 | 0.091 | |
30209 | mm | 85.000 | 45.000 | 19.000 | 16.000 | 20.750 | 3.0 | 2.3 |
in | 3.346 | 1.772 | 0.748 | 0.630 | 0.817 | 0.118 | 0.091 | |
30210 | mm | 90.000 | 50.000 | 20.000 | 17.000 | 21.750 | 3.0 | 2.3 |
in | 3.543 | 1.969 | 0.787 | 0.669 | 0.856 | 0.118 | 0.091 | |
30211 | mm | 100.000 | 55.000 | 21.000 | 18.000 | 22.750 | 4.0 | 2.3 |
in | 3.937 | 2.165 | 0.827 | 0.709 | 0.896 | 0.157 | 0.091 | |
30212 | mm | 110.000 | 60.000 | 22.000 | 19.000 | 23.750 | 4.0 | 2.3 |
in | 4.331 | 2.362 | 0.866 | 0.748 | 0.935 | 0.157 | 0.091 | |
30213 | mm | 120.000 | 65.000 | 23.000 | 20.000 | 24.750 | 4.0 | 2.3 |
in | 4.724 | 2.559 | 0.906 | 0.787 | 0.974 | 0.157 | 0.091 | |
30214 | mm | 125.000 | 70.000 | 24.000 | 21.000 | 26.250 | 4.0 | 2.8 |
in | 4.921 | 2.756 | 0.945 | 0.827 | 1.033 | 0.157 | 0.110 | |
30215 | mm | 130.000 | 75.000 | 25.000 | 22.000 | 27.250 | 4.0 | 2.8 |
in | 5.118 | 2.953 | 0.984 | 0.866 | 1.073 | 0.157 | 0.110 | |
30216 | mm | 140.000 | 80.000 | 26.000 | 22.000 | 28.250 | 5.0 | 3.5 |
in | 5.512 | 3.150 | 1.024 | 0.866 | 1.112 | 0.197 | 0.138 | |
30217 | mm | 150.000 | 85.000 | 28.000 | 24.000 | 30.500 | 5.0 | 3.5 |
in | 5.906 | 3.346 | 1.102 | 0.945 | 1.201 | 0.197 | 0.138 | |
30218 | mm | 160.000 | 90.000 | 30.000 | 26.000 | 32.500 | 5.0 | 3.5 |
in | 6.299 | 3.543 | 1.181 | 1.024 | 1.280 | 0.197 | 0.138 | |
30219 | mm | 170.000 | 95.000 | 32.000 | 27.000 | 34.500 | 5.5 | 4 |
in | 6.693 | 3.740 | 1.260 | 1.063 | 1.358 | 0.217 | 0.157 | |
30220 | mm | 180.000 | 100.000 | 37.000 | 29.000 | 37.000 | 5.5 | 4 |
in | 7.087 | 3.937 | 1.457 | 1.142 | 1.457 | 0.217 | 0.157 | |
30221 | mm | 190.000 | 105.000 | 39.000 | 30.000 | 39.000 | 5.5 | 4.0 |
in | 7.480 | 4.134 | 1.535 | 1.181 | 1.535 | 0.217 | 0.157 | |
30222 | mm | 200.000 | 110.000 | 38.000 | 32.000 | 41.000 | 5.5 | 4 |
in | 7.874 | 4.331 | 1.496 | 1.260 | 1.614 | 0.217 | 0.157 | |
30224 | mm | 215.000 | 120.000 | 40.000 | 34.000 | 43.500 | 5.5 | 4 |
in | 8.465 | 4.724 | 1.575 | 1.339 | 1.713 | 0.217 | 0.157 | |
30303 | mm | 47.000 | 17.000 | 14.000 | 12.000 | 15.250 | 2.5 | 1.6 |
in | 1.850 | 0.669 | 0.551 | 0.472 | 0.600 | 0.098 | 0.063 | |
30304 | mm | 52.000 | 20.000 | 15.000 | 13.000 | 16.250 | 3.0 | 2.3 |
in | 2.047 | 0.787 | 0.591 | 0.512 | 0.640 | 0.118 | 0.091 | |
30305 | mm | 62.000 | 25.000 | 17.000 | 15.000 | 18.250 | 3.0 | 2.3 |
in | 2.441 | 0.984 | 0.669 | 0.591 | 0.719 | 0.118 | 0.091 | |
30306 | mm | 72.000 | 30.000 | 19.000 | 16.000 | 20.750 | 3.0 | 2.3 |
in | 2.835 | 1.181 | 0.748 | 0.630 | 0.817 | 0.118 | 0.091 | |
30306/H23 | mm | 72.000 | 30.000 | 19.000 | 18.000 | 23.000 | 3.0 | 2.3 |
in | 2.835 | 1.181 | 0.748 | 0.709 | 0.906 | 0.118 | 0.091 | |
30307 | mm | 80.000 | 35.000 | 21.000 | 18.000 | 22.750 | 4.0 | 2.3 |
in | 3.150 | 1.378 | 0.827 | 0.709 | 0.896 | 0.157 | 0.091 | |
30308 | mm | 90.000 | 40.000 | 23.000 | 20.000 | 25.250 | 4.0 | 2.3 |
in | 3.543 | 1.575 | 0.906 | 0.787 | 0.994 | 0.157 | 0.091 | |
30309 | mm | 100.000 | 45.000 | 25.000 | 22.000 | 27.250 | 4.0 | 2.8 |
in | 3.937 | 1.772 | 0.984 | 0.866 | 1.073 | 0.157 | 0.110 | |
30310 | mm | 110.000 | 50.000 | 27.000 | 23.000 | 29.250 | 5.0 | 3.5 |
in | 4.331 | 1.969 | 1.063 | 0.906 | 1.152 | 0.197 | 0.138 | |
30311 | mm | 120.000 | 55.000 | 29.000 | 25.000 | 31.500 | 5.0 | 2.8 |
in | 4.724 | 2.165 | 1.142 | 0.984 | 1.240 | 0.197 | 0.110 | |
30312 | mm | 130.000 | 60.000 | 31.000 | 26.000 | 33.500 | 5.5 | 4 |
in | 5.118 | 2.362 | 1.220 | 1.024 | 1.319 | 0.217 | 0.157 | |
30313 | mm | 140.000 | 65.000 | 33.000 | 28.000 | 36.000 | 5.5 | 4 |
in | 5.512 | 2.559 | 1.299 | 1.102 | 1.417 | 0.217 | 0.157 | |
30314 | mm | 150.000 | 70.000 | 35.000 | 30.000 | 38.000 | 5.5 | 4 |
in | 5.906 | 2.756 | 1.378 | 1.181 | 1.496 | 0.217 | 0.157 | |
30315 | mm | 160.000 | 75.000 | 37.000 | 31.000 | 40.000 | 5.5 | 4 |
in | 6.299 | 2.953 | 1.457 | 1.220 | 1.575 | 0.217 | 0.157 | |
30316 | mm | 170.000 | 80.000 | 39.000 | 33.000 | 42.500 | 5.5 | 4 |
in | 6.693 | 3.150 | 1.535 | 1.299 | 1.673 | 0.217 | 0.157 | |
30317 | mm | 180.000 | 85.000 | 41.000 | 34.000 | 44.500 | 7.0 | 4.5 |
in | 7.087 | 3.346 | 1.614 | 1.339 | 1.752 | 0.276 | 0.177 | |
30318 | mm | 190.000 | 90.000 | 43.000 | 36.000 | 46.500 | 7.0 | 4.5 |
in | 7.480 | 3.543 | 1.693 | 1.417 | 1.831 | 0.276 | 0.177 | |
30319 | mm | 200.000 | 95.000 | 45.000 | 38.000 | 49.500 | 7.0 | 4.5 |
in | 7.874 | 3.740 | 1.772 | 1.496 | 1.949 | 0.276 | 0.177 | |
30320 | mm | 215.000 | 100.000 | 47.000 | 39.000 | 51.500 | 7.0 | 4.5 |
in | 8.465 | 3.937 | 1.850 | 1.535 | 2.028 | 0.276 | 0.177 |
1) Taper roller bearings (Inch;Single Row;Double rows).
2) Deep groove ball bearings(Gcr15 Carbon Z 2Z RS 2RS) .
3) Pillow Block Bearings and seats(UCP UCF UCFL UCT).
4) Wheel Hub Bearing.
Wafang Dian Bearing Advantage
1) Material Advantage
All the material for Wafang Dian bearing are from the best suppliers in China.
2) Processing Advantage
we can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from Other Bearings manufacturers.
3) Quality control advantage
All the bearing parts are 100% strictly inspected before and during production including Metallurgical testing, crack detection, roundness, hardness, roughness and g++eometric dimensions.
4) All of bearings meet the ISO international standard.
5) Appearance Technology Advantage
we can provide light chamfer, black chamfer, black chamfer of the rollers. The bearings are produced all according to customer's requirements.
6) Service Advantage
Your satisfaction is our biggest goal. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.
Company information

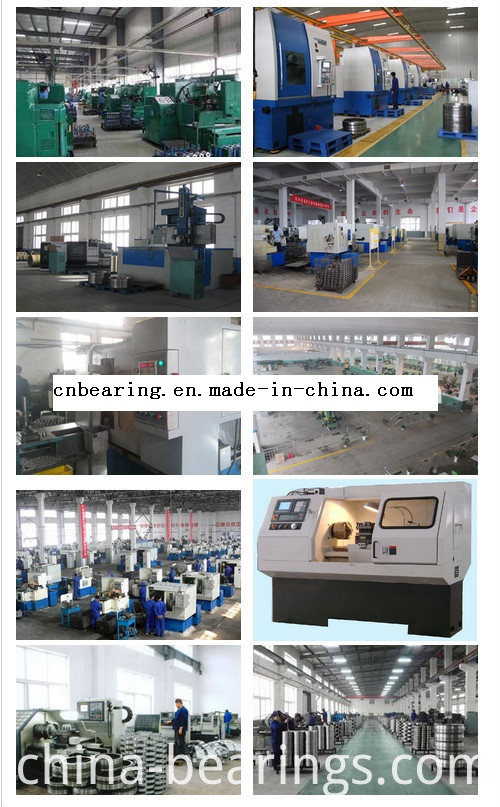

Our factory has been founded for around 30 years, We are a professional manufacturer of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, Cylindrical Roller Bearing, tapered roller bearings, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in Mid-eastern countries. Thanks for every customer's support and trust, our company hope to establish mutual benefit and development business relations with you!
If you are interested in our products Deep Groove Ball Bearing, welcome to contact us for more detailed information, Your inquiry related to our product & price will be replied within 24hours Well-trained & experienced staff are to answer all your inquiries. OEM & ODM projects are highly welcomed. We have strong R&M team here to help. Free samples available The professional Logistic Center service Technical support after sale Any other reasonable requirements.
We participate Canton Fair,Shanghai Auto Mechanika Fair,Professional Auto Parts Fair annually.
Welcome Inquiry and order !
Thank you! Contact us if you need more details on Taper Roller Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 32214 32215 32216 32217 32218 32219 Bearing、32214 32215 32216 32217 Taper Roller Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Tapered Roller Bearing
