35mm 32207 Wheel Bearing Chrome Steel Tapered Roller Bearings 33207

Basic Info

Model No.:  32207

Product Description

Model NO.: 32207 The Number of Rows: Single Material: Bearing Steel Load Direction: Radial Bearing Hardness: 59-63HRC Seals Type: Open, Open Noise Level: Z, Z1, Z2, Z3, Z4 Service: OEM Service, Good Product, Prompt Delivery Guarantee: One Year Trademark: LYAZ or OEM Specification: p5, z1, z2, z3, z4, z5 HS Code: 8482200000 Rolling Body: Roller Bearings Outer Dimension: Small and Medium-Sized (60-115mm) Spherical: Non-Aligning Bearings Separated: Separated Precision Rating: P0,P6,P5, P0,P5,P6 Vibration: V1,V2,V3,V4 Lubrication: Oil, Grease, Dry Customer Brand: Acceptable OEM Service: Approval Transport Package: Lyaz Standard Export Carton or OEM Packing Origin: China Packaging & Delivery
Packaging Details: 1.Industrial Packing: a)Plastic Tube+Carton+Pallet b)Plastic Bag+Kraft Paper+Carton+Pallet .
2.Commercial Packing a)Plastic Bag+Color Box+Carton+Pallet.
3. According to the Requirement of Customers.
Delivery Detail: within 7 days after confirmed this order
 35mm wheel 32207 chrome steel Tapered roller bearings 33207   Product Description  Descriptions of tapered roller bearings  Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load Tapered Roller Bearings generally come in two parts - the cone (consisting of the inner ring and roller cage assembly) and the cup (outer ring). These two parts can be mounted separately. Tapered Roller Bearings are particularly suited to the accommodation of combined radial and axial loads   Specifications of 32207 bearings

Series

32207

Cone Part Number

X32207

Cup Part Number

Y32207

Design Units

Metric

Bearing Weight

0.4 Kg1 lb

Cage Type

Stamped Steel
Dimensions

d - Bore

35.000 mm1.3780 in

D - Cup Outer Diameter

72.000 mm2.8346 in

B - Cone Width

23.000 mm0.9055 in

C - Cup Width

19.000 mm0.7480 in

T - Bearing Width

24.250 mm0.9547 in
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1 1.520 mm0.060 in
r - Cup Backface "To Clear" Radius2 1.52 mm0.060 in

da - Cone Frontface Backing Diameter

41.40 mm1.63 in

db - Cone Backface Backing Diameter

43.43 mm1.71 in

Da - Cup Frontface Backing Diameter

67.10 mm2.68 in

Db - Cup Backface Backing Diameter

62.99 mm2.48 in

Ab - Cage-Cone Frontface Clearance

2.3 mm0.09 in

Aa - Cage-Cone Backface Clearance

1.5 mm0.06 in
a - Effective Center Location3 -6.40 mm-0.25 in
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4 19400 N4370 lbf
C1 - Dynamic Radial Rating (1 million revolutions)5 74900 N16800 lbf

C0 - Static Radial Rating

82300 N18500 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 12500 N2800 lbf
Factors
K - Factor7 1.56
e - ISO Factor8 0.37
Y - ISO Factor9 1.6

G1 - Heat Generation Factor (Roller-Raceway)

21.5

G2 - Heat Generation Factor (Rib-Roller End)

11.4

Cg - Geometry Factor

0.0705
  Applications of 32207 bearings  1)Agriculture machine parts,   2)Light textile,   3)Mining machine,crasher machine,   4)Food &beverage machine,   5)Pharmaceutical machine,   6)Chemical processing,   7)Printing machine,   8)Dyeing machine,   9)Airport machine,passaenger lift,elevator   10)Air-conditioning,   Series of tapered roller bearings

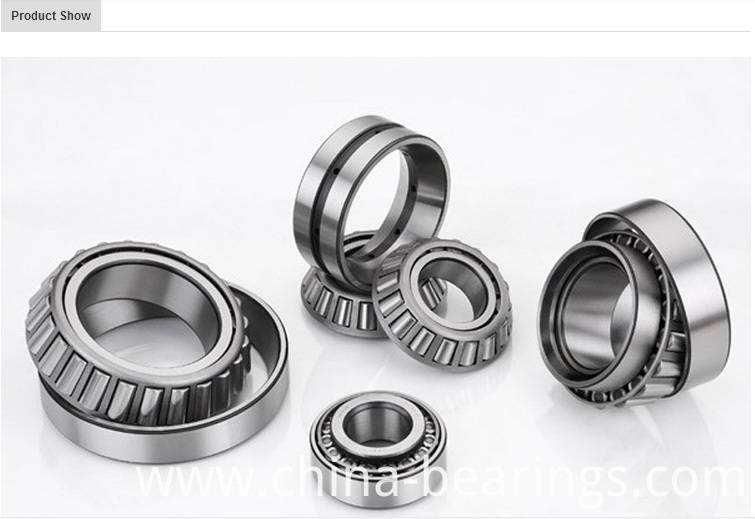

Taper roller bearings







30202 series

30202 30203 30204 30205 30206 30207 30208 30209 30210 30211 30212 30213 30214 30215 30216 30217 30218 30219 30220 30221 30222 30224 30226 30228 30230 30232 30236 30240 30244





30302 series

30302 30303 30304 30305 30306 30307 30308 30309 30310 30311 30312 30313 3031430315 30316 30317 30318 30319 30320 30321 30322 30324 30326 30328 30330 30332 303525







32204 series

32204 32205 32206 32207 32208 32209 32210 32211 32212 32213 32214 32215 32216 32217 32218 32219 32220 32221 32222 32224 32226 32228 3223032232 32236 32238 32240 32244 32248





32303 series

32303 32304 32305 32306 32307 32308 32309 32310 32311 32312 32313 32314 32315 32316 32317 32318 32319 32320 32321 32322 32324 32326 32330 32334





31303 series

31303 31304 31305 31306 31307 31308 31309 31310 31311 31312 31313 31314 31315 31316 31317 31318 31319 31320 31324 31326 31328 31332







32004 series

32004 32005 32006 32007 32008 32009 32010 32011 32012 32013 32014 32015 32016 32017 32018 32019 32020 32021 32022 32024 32026 32028 32030 32032 32034 32036 32038 32040 32044 32048 32052 32056 32060 32064


35mm 32207 Wheel Bearing Chrome Steel Tapered Roller Bearings 33207

Number

Unit

Cup    OUTSIDE DIA.

Cone  BORE

Cone WIDTH

Cup  WIDTH

Bearing WIDTH

Max.Shaft  Fillet Radii

Max.Hsng.  Fillet Radii

D

d

B

C

T

R

r

30204

mm

47.000

20.000

14.000

12.000

15.250

2.5

1.6

in

1.850

0.787

0.551

0.472

0.600

0.098

0.063

30205

mm

52.000

25.000

15.000

13.000

16.250

2.5

1.9

in

2.047

0.984

0.591

0.512

0.640

0.098

0.075

30206

mm

62.000

30.000

16.000

14.000

17.250

2.5

1.9

in

2.441

1.181

0.630

0.551

0.679

0.098

0.075

30207

mm

72.000

35.000

17.000

15.000

18.250

3.0

2.3

in

2.835

1.378

0.669

0.591

0.719

0.118

0.091

30207/D80

mm

80.000

35.000

17.000

15.000

18.250

1.4

0.9

in

3.150

1.378

0.669

0.591

0.719

0.055

0.035

30208

mm

80.000

40.000

18.000

16.000

19.750

3.0

2.3

in

3.150

1.575

0.709

0.630

0.778

0.118

0.091

30209

mm

85.000

45.000

19.000

16.000

20.750

3.0

2.3

in

3.346

1.772

0.748

0.630

0.817

0.118

0.091

30210

mm

90.000

50.000

20.000

17.000

21.750

3.0

2.3

in

3.543

1.969

0.787

0.669

0.856

0.118

0.091

30211

mm

100.000

55.000

21.000

18.000

22.750

4.0

2.3

in

3.937

2.165

0.827

0.709

0.896

0.157

0.091

30212

mm

110.000

60.000

22.000

19.000

23.750

4.0

2.3

in

4.331

2.362

0.866

0.748

0.935

0.157

0.091

30213

mm

120.000

65.000

23.000

20.000

24.750

4.0

2.3

in

4.724

2.559

0.906

0.787

0.974

0.157

0.091

30214

mm

125.000

70.000

24.000

21.000

26.250

4.0

2.8

in

4.921

2.756

0.945

0.827

1.033

0.157

0.110

30215

mm

130.000

75.000

25.000

22.000

27.250

4.0

2.8

in

5.118

2.953

0.984

0.866

1.073

0.157

0.110

30216

mm

140.000

80.000

26.000

22.000

28.250

5.0

3.5

in

5.512

3.150

1.024

0.866

1.112

0.197

0.138

30217

mm

150.000

85.000

28.000

24.000

30.500

5.0

3.5

in

5.906

3.346

1.102

0.945

1.201

0.197

0.138

30218

mm

160.000

90.000

30.000

26.000

32.500

5.0

3.5

in

6.299

3.543

1.181

1.024

1.280

0.197

0.138

30219

mm

170.000

95.000

32.000

27.000

34.500

5.5

4

in

6.693

3.740

1.260

1.063

1.358

0.217

0.157

30220

mm

180.000

100.000

37.000

29.000

37.000

5.5

4

in

7.087

3.937

1.457

1.142

1.457

0.217

0.157

30221

mm

190.000

105.000

39.000

30.000

39.000

5.5

4.0

in

7.480

4.134

1.535

1.181

1.535

0.217

0.157

30222

mm

200.000

110.000

38.000

32.000

41.000

5.5

4

in

7.874

4.331

1.496

1.260

1.614

0.217

0.157

30224

mm

215.000

120.000

40.000

34.000

43.500

5.5

4

in

8.465

4.724

1.575

1.339

1.713

0.217

0.157

30303

mm

47.000

17.000

14.000

12.000

15.250

2.5

1.6

in

1.850

0.669

0.551

0.472

0.600

0.098

0.063

30304

mm

52.000

20.000

15.000

13.000

16.250

3.0

2.3

in

2.047

0.787

0.591

0.512

0.640

0.118

0.091

30305

mm

62.000

25.000

17.000

15.000

18.250

3.0

2.3

in

2.441

0.984

0.669

0.591

0.719

0.118

0.091

30306

mm

72.000

30.000

19.000

16.000

20.750

3.0

2.3

in

2.835

1.181

0.748

0.630

0.817

0.118

0.091

30306/H23

mm

72.000

30.000

19.000

18.000

23.000

3.0

2.3

in

2.835

1.181

0.748

0.709

0.906

0.118

0.091

30307

mm

80.000

35.000

21.000

18.000

22.750

4.0

2.3

in

3.150

1.378

0.827

0.709

0.896

0.157

0.091

30308

mm

90.000

40.000

23.000

20.000

25.250

4.0

2.3

in

3.543

1.575

0.906

0.787

0.994

0.157

0.091

30309

mm

100.000

45.000

25.000

22.000

27.250

4.0

2.8

in

3.937

1.772

0.984

0.866

1.073

0.157

0.110

30310

mm

110.000

50.000

27.000

23.000

29.250

5.0

3.5

in

4.331

1.969

1.063

0.906

1.152

0.197

0.138

30311

mm

120.000

55.000

29.000

25.000

31.500

5.0

2.8

in

4.724

2.165

1.142

0.984

1.240

0.197

0.110

30312

mm

130.000

60.000

31.000

26.000

33.500

5.5

4

in

5.118

2.362

1.220

1.024

1.319

0.217

0.157

30313

mm

140.000

65.000

33.000

28.000

36.000

5.5

4

in

5.512

2.559

1.299

1.102

1.417

0.217

0.157

30314

mm

150.000

70.000

35.000

30.000

38.000

5.5

4

in

5.906

2.756

1.378

1.181

1.496

0.217

0.157

30315

mm

160.000

75.000

37.000

31.000

40.000

5.5

4

in

6.299

2.953

1.457

1.220

1.575

0.217

0.157

30316

mm

170.000

80.000

39.000

33.000

42.500

5.5

4

in

6.693

3.150

1.535

1.299

1.673

0.217

0.157

30317

mm

180.000

85.000

41.000

34.000

44.500

7.0

4.5

in

7.087

3.346

1.614

1.339

1.752

0.276

0.177

30318

mm

190.000

90.000

43.000

36.000

46.500

7.0

4.5

in

7.480

3.543

1.693

1.417

1.831

0.276

0.177

30319

mm

200.000

95.000

45.000

38.000

49.500

7.0

4.5

in

7.874

3.740

1.772

1.496

1.949

0.276

0.177

30320

mm

215.000

100.000

47.000

39.000

51.500

7.0

4.5

in

8.465

3.937

1.850

1.535

2.028

0.276

0.177

    35mm 32207 Wheel Bearing Chrome Steel Tapered Roller Bearings 33207 LYAZ Leading Products:
1) Taper roller bearings (Inch;Single Row;Double rows).
2) Deep groove ball bearings(Gcr15 Carbon Z 2Z RS 2RS) .
3) Pillow Block Bearings and seats(UCP UCF UCFL UCT).
4) Wheel Hub Bearing.

Wafang Dian Bearing Advantage
1) Material Advantage
All the material for Wafang Dian bearing are from the best suppliers in China.
2) Processing Advantage
we can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from Other Bearings manufacturers.
3) Quality control advantage
All the bearing parts are 100% strictly inspected before and during production including Metallurgical testing, crack detection, roundness, hardness, roughness and g++eometric dimensions.
4) All of bearings meet the ISO international standard.
5) Appearance Technology Advantage
we can provide light chamfer, black chamfer, black chamfer of the rollers. The bearings are produced all according to customer's requirements.
6) Service Advantage
Your satisfaction is our biggest goal. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.

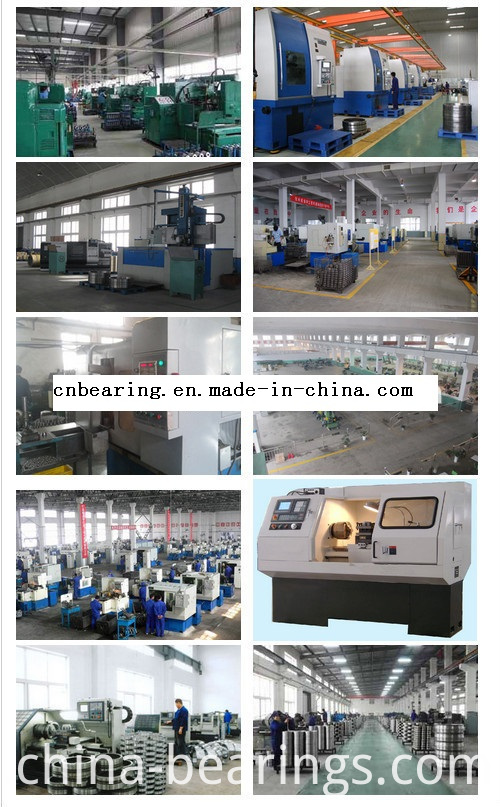

 Company information
Our factory has been founded for around 30 years, We are a professional manufacturer of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, Cylindrical Roller Bearing, tapered roller bearings, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in Mid-eastern countries. Thanks for every customer's support and trust, our company hope to establish mutual benefit and development business relations with you!
35mm 32207 Wheel Bearing Chrome Steel Tapered Roller Bearings 33207

35mm 32207 Wheel Bearing Chrome Steel Tapered Roller Bearings 33207
 If you are interested in our products  Deep Groove Ball Bearing, welcome to contact us for more detailed information, Your inquiry related to our product & price will be replied within 24hours Well-trained & experienced staff are to answer all your inquiries. OEM & ODM projects are highly welcomed. We have strong R&M team here to help. Free samples available The professional Logistic Center service Technical support after sale Any other reasonable requirements.
We participate Canton Fair,Shanghai Auto Mechanika Fair,Professional Auto Parts Fair annually.

Welcome Inquiry and order !
Thank you!

Contact us if you need more details on Taper Roller Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 32207 Bearing、32207 Taper Roller Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Tapered Roller Bearing
