Home > Products > Spherical Roller Bearing > Original Japan NSK Koyo NTN Bearing Price List Catalogue Spherical Self-Aligning Roller Bearing 22205 22208 22210 22214 22218

Original Japan NSK Koyo NTN Bearing Price List Catalogue Spherical Self-Aligning Roller Bearing 22205 22208 22210 22214 22218

Productivity:
1, 000, 000 Sets/Year
Place of Origin:
China
Supply Ability:
1, 000, 000 Sets/Year
  • Mr. Shengyun Wei

Basic Info

Model No.:  22205 22208 22210 22214 22218

Product Description

  • Model NO.: 22205 22208 22210 22214 22218
  • The Number of Rows: Double
  • Material: Bearing Steel
  • Load Direction: Radial Bearing
  • Precision Rating: P6 P5 P4 P2
  • OEM Service: Accept
  • Retainer Design: Ca/Cc/Cak/E/MB/K30
  • Noise Level: Z1,Z2,Z3,Z4
  • Guarantee: One Year
  • Trademark: LYAZ or OEM
  • Specification: CE SGS
  • HS Code: 8482200000
  • Rolling Body: Roller Bearings
  • Outer Dimension: Small and Medium-Sized (60-115mm)
  • Spherical: Aligning Bearings
  • Separated: Separated
  • Seals Type: Open
  • Clearance: C2,C3,C4,C5,C6
  • Vibration Level Codes: V4, V3, V2, V1
  • Cage′s Material: Ca Brass
  • Cage: Steel, Brass, Nylon
  • Transport Package: Lyaz Standard Export Carton or OEM Packing
  • Origin: China

Packaging & Delivery


Packaging Details: 1)Neutral package & wooden package
2)Carton package+pallet
3)Wooden package+pallet
4)Accroding to the customer's requirments customized packaging
Delivery Detail: within 7~20 working days after receiving payment

Product Description

Original Japan NSK KOYO NTN Bearing price list catalogue spherical self-aligning roller

 bearing 22205 22208 22210 22214 22218

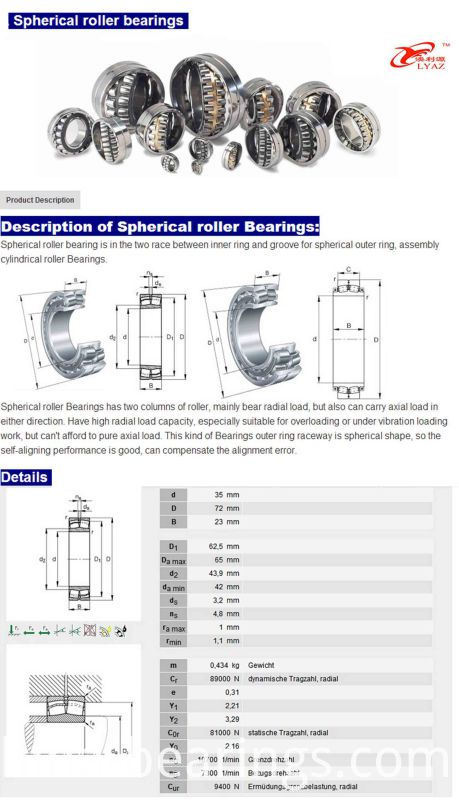

Description of self-aligning roller bearing

self-aligning roller bearing
1.OEM
2.all brands supplied
3.prompt delivery

4.20 years experience

Details

1.self-algning roller bearings with two rows rollers, are mainly used to bear radial load,but also can take axial load in either direction. this kind of bearing have a high radial load capacity, especially suitable for working heavy loads or vibration, but unable to withsand pure axial load. good aligning performance, can compensate the coaxiality error.
2.mainly purposes: papermaking machinery, speed reducer, railway vehicle axle, roller mill, crusher, vibrating screen, printing machinery,woodworking machinery,self-aligning bearing with vertical unit etc.
3.self-aligning roller bearings can be divided into, cylindrical hole, tapered hole.
4.for the self-aligning bearings, a large number of bearings generally use mechanical or hydraulic pressure method for installation.

Parameters of self-aligning roller bearing

Brand
CLUNT or ALL Imported famous brand
Name
bearing(self-aligning roller bearing)
ALL Model
230***222***223***
Material
GCr15SiMn, GCr15, G20Cr2Ni4A,9Cr18
Certificate
 ISO9001:2008
Precision
P0, P6, P5, P4, P2
 ID Size:
20mm-850mm
Clearance
C0,C1,C2,C3,C4,C5 etc.
Seals Type
RS, 2RS, R2, Z, 2Z, 2RZ etc
Basic Rated Load (KN)
A. Dynamic:
31.5-8750
B. Static:
31.2-22200
Limit Speed(r/min)
A. Grease
6000-75
B. Oil
7500-95
Features
Low price,high speed,long life
Application
widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application and are used for cool and hot mills.
Delivery Time
2-5 days
Package
card board package, pallet, wooden case or according to the requirement of the customers
Price
FOB,CIF


Stock series























Spherical roller bearings





23022  series

23022 23024 23026 23028 23030 23032 23034 23036 23038 23040 23044

 23048 23052 23056 23060 23064 23068 23072 23076 23080 23084 23088 23092 23096





24024  series

24024 24026 24028 24030 24032 24034 24036 24038 24040 24044

 24048 24052 24056 24060 24064 24068 24072





23218  series

23218 23220 23222 23224 23226 23228 23230 23232 23234 23236

 23238 23240 23244 23248 23252 23256 23260 23264 23280 23284 23296





22208  series

22208 22209 22210 22211 22212 22213 22214 22215 22216 22217

22218 22219 22220 22222 22224 22226 22228 22230 22232 22234

 22236 22238 22240 22244 22248 22252 22256 22260





22308 series

22308 22309 22310 22311 22312 22313 22314 22315 22316 22317

 22318 22319 22320 22322 22324 22326 22328 22330 22332 22334

22336 22338 22340 22344 22348 22352 22356 22372 22380






Original Japan NSK Koyo NTN Bearing Price List Catalogue Spherical Self-Aligning Roller Bearing 22205 22208 22210 22214 22218


Technical parameters:

Structure

l Aligning cylindrical bore roller bearing

l Tapered bore spherical roller bearings

lShaker special spherical roller bearings

l Truck bearings

lSingle row self-aligning roller bearings

lDouble sealed spherical roller bearings (with steel sheet seals enhanced films, wear-resistant when used oil)

Size range

LYAZ-aligning roller bearing bearing basic dimensions are listed in the data table size,

Diameter size range: 20mm ~1020mm

diameter size range: 52mm ~ 1980mm

 Width range: 18mm ~ 500 mm

Product parameters and model suffix

features

Whether under the inner wall and the use of cage can be divided into CA-and CC-type E-type and four MB type. CA-type self-aligning roller bearing inner ring with two small ribs across the middle without ribs, the cage structure to claw one solid cage, usually copper or carbon steel materials, the structure, bearing large, extra large bearings be used more; CC-type self-aligning roller bearings without inner ring of large and small ribs, roller "bootstrap" for the activities of the middle ring, cage frame for the steel stamping, rolling bearings of the structure sub length increases, increase the rated load, but also has high speed and low friction loss.

External form change

K:   Tapered bore bearing, taper is 1:12

K30: Tapered bore bearing, taper is 1:30

N:   A snap ring groove on the outer ring

/P0:  Equal to original precision G, omittable

/P6:  Equal to original precision E

/C0:  Nominal clearance, omitted in designation

/C2:  Less than nominal clearance

/C3:  Larger clearance than C0

/C4:  Larger clearance than C3

/C5:  Larger clearance than C4

/C9:  Special clearance

/W33: A lubricating groove and three lubricating holes on the outer ring

/S0:  Working temperature up to 150ºC

/S1:  Working temperature up to 200ºC

/S2:  Working temperature up to 250ºC

/S3:  Working temperature up to 300ºC

/S4:  Working temperature up to 350ºC



Competitive Advantage

Clean bearing steel - more durable life

Optimized geometry of roller raceway - better carrying capacity

Rolled superior surface finish - less friction, lower operating temperature

Self-aligning Spherical roller bearing Parameter:

Principal dimensions Basic load ratings Fatigue load limit Speed ratings Mass Designation
      dynamic static Reference speed Limiting speed
d D B C C0 Pu
mm kN kN r/min kg YNR
85 150 36 291 325 34.5 4000 5600 2.6 22217 EK
85 150 36 291 325 34.5 4000 5600 2.65 22217 E
85 150 44 291 325 34.5 - 1100 3 BS2-2217-2CS/VT143
85 150 44 291 325 34.5 - 1100 2.9 BS2-2217-2CSK/VT143
85 180 41 331 375 39 3800 5300 5.15 21317 EK
85 180 41 331 375 39 3800 5300 5.2 21317 E
85 180 60 577 620 61 2800 3800 7.65 22317 E
85 180 60 577 620 61 2800 3800 7.5 22317 EK
85 180 60 577 620 61 2800 3800 7.65 22317 EJA/VA406
85 180 60 577 620 61 2800 3800 7.65 22317 EJA/VA405
85 180 60 577 620 61 2800 3800 7.5 22317 EKJA/VA405
90 160 40 331 375 39 3800 5300 3.35 22218 EK
90 160 40 331 375 39 3800 5300 3.4 22218 E
90 160 48 331 375 39 - 1000 3.7 BS2-2218-2CS/VT143
90 160 48 331 375 39 - 1000 3.6 BS2-2218-2CSK/VT143
90 160 52 372 440 48 2800 3800 4.5 23218 CCK/W33
90 160 52 372 440 48 2800 3800 4.65 23218 CC/W33
90 190 43 393 450 46.5 3600 4800 6.1 21318 E
90 190 43 393 450 46.5 3600 4800 6 21318 EK
90 190 64 637 695 67 2600 3600 8.85 22318 EK
90 190 64 637 695 67 2600 3600 9.05 22318 EJA/VA405
90 190 64 637 695 67 2600 3600 9.05 22318 E
90 190 64 637 695 67 2600 3600 8.85 22318 EKJA/VA405
95 170 43 393 450 46.5 3600 4800 4.15 22219 E
95 170 43 393 450 46.5 3600 4800 4.05 22219 EK
95 200 45 433 490 49 3400 4500 6.95 21319 EK
95 200 45 433 490 49 3400 4500 7.05 21319 E
95 200 67 699 765 73.5 2600 3400 10.5 22319 E
95 200 67 699 765 73.5 2600 3400 10.5 22319 EK
95 200 67 699 765 73.5 2600 3400 10.5 22319 EJA/VA405
95 200 67 699 765 73.5 2600 3400 10.5 22319 EKJA/VA405

Above parameter are for reference only,other size or model you can contact us directly.



Original Japan NSK Koyo NTN Bearing Price List Catalogue Spherical Self-Aligning Roller Bearing 22205 22208 22210 22214 22218


Packaging & Shipping

1. By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and EMS.
2. By Air: We can ship from Shandong, Guangzhou etc.
3. By Sea: We can offer you FOB Qingdao.
4. We can also send bearings to your forwarder or agent in China, who can arrange shipment for you.

Company Information

 Our factory has been founded for around 30 years, We are a professional manufacturer of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, cylindrical roller bearing, tapered roller bearings, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in Mid-eastern countries. Thanks for every customer's support and trust, our company hope to establish mutual benefit and development business relations with you!

Original Japan NSK Koyo NTN Bearing Price List Catalogue Spherical Self-Aligning Roller Bearing 22205 22208 22210 22214 22218


Our service
Original Japan NSK Koyo NTN Bearing Price List Catalogue Spherical Self-Aligning Roller Bearing 22205 22208 22210 22214 22218

If you are interested in our products  deep groove ball bearing, welcome to contact us for more detailed information,

  • Your inquiry related to our product & price will be replied within 24hours
  • Well-trained & experienced staff are to answer all your inquiries.
  • OEM & ODM projects are highly welcomed. We have strong R&M team here to help.
  • Free samples available
  • The professional Logistic Center service
  • Technical support after sale
  • Any other reasonable requirements.

We participate Canton Fair,Shanghai Auto Mechanika Fair,Professional Auto Parts Fair annually.

Welcome Inquiry and order !
Thank you!

Contact us if you need more details on 22205 22208 22210 22214 Spherical Roller Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Spherical Roller Bearing、Spherical Bearing 22205 22208 22210 22214 22218. If these products fail to match your need, please contact us and we would like to provide relevant information.
