Model No.: GB60
Slide Linear Guide Original Ball Slide Block Bearing Linear Guide
The linear guide is used to support and guide the moving parts, and perform reciprocating linear motion in a given direction. During installation, that is, due to the elastic deformation of the steel ball and the transfer of the contact point, even if the installation surface is somewhat deviated, it can be absorbed by the inside of the linear rail slider, resulting in the effect of self-aligning ability to obtain high-precision and stable smooth motion.
The channel of our company adopts a precision grinding machine for one-time forming and grinding. The accuracy of the channel shape is controlled within
The semi-enclosed linear sliding table module is mainly composed of aluminum body, diagonal bearing holder, cover plate, sliding seat and other components. It uses corrosion-resistant, high-strength aluminum alloy material as the base, and installs a high-precision linear guide pair in the base. The aluminum alloy movable seat is installed on the sliding block. The middle part of the movable seat is connected with the nut of the ball screw. The motor drives the sliding seat to reciprocate through the screw rod. The diagonal bearing fixed seat can ensure the repeatability and positioning accuracy of the movable seat. The cover is integrally protected on the movable seat.

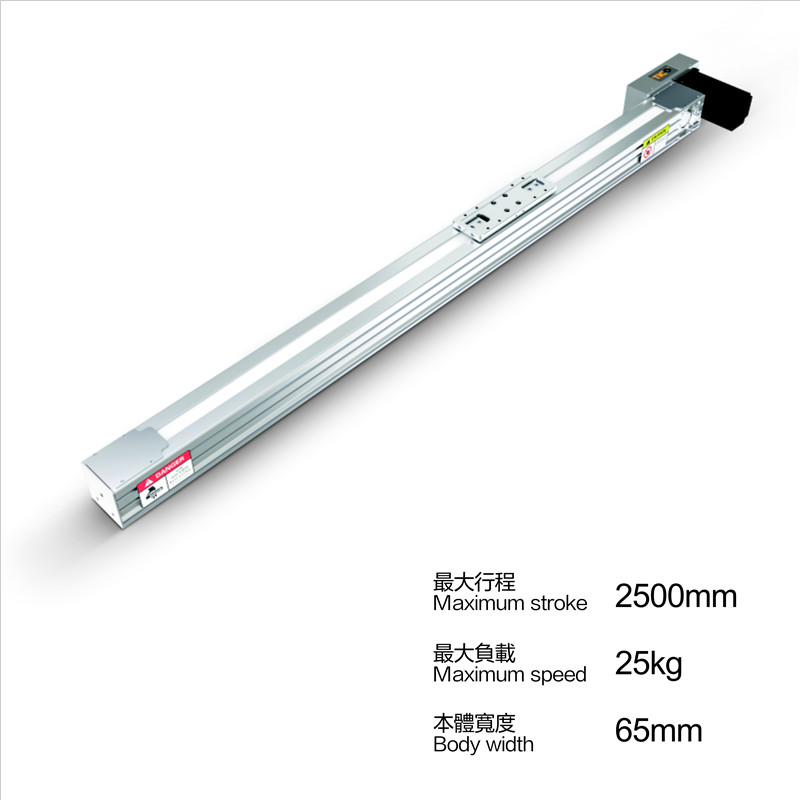

The GB series adopts synchronous belt transmission, the speed is fast, the configuration servo motor can reach 2000mm/s, the repeatability is ±0.04, especially suitable for high-speed movement needs.
Guangdong TICO Automation Technology Co.,Ltd.
Guangdong TICO is a high-tech enterprise specializing in R&D, manufacturing, sales and service of slide module, linear module, linear motion unit, precision manipulator and servo positioning slide automation equipment. The company has a number of long-term engaged in the field of automation control, not only rich field experience, but also hold the leading scientific and technological elite.
The company upholds the core values of "creating value for partners" and "taking inheritance as the basis, taking trust as the basis" as the spirit of enterprise. Through continuous excellent service and marketing system, we insist on independent innovation and self.
Brand building, adhering to continuous learning, continuous improvement and self-transcendence. At present, we have established a good cooperative relationship with hundreds of enterprises, combining with the characteristics of customer industry, to provide customers with advanced, practical and reliable automation equipment. Our strength is strong, product specifications are complete, and delivery time is short. After a long-term baptism of the market, it has accumulated rich resources and good reputation,and is widely regarded as a trustworthy strategic partner by customers.
High quality products and services originate from advanced technology management.
